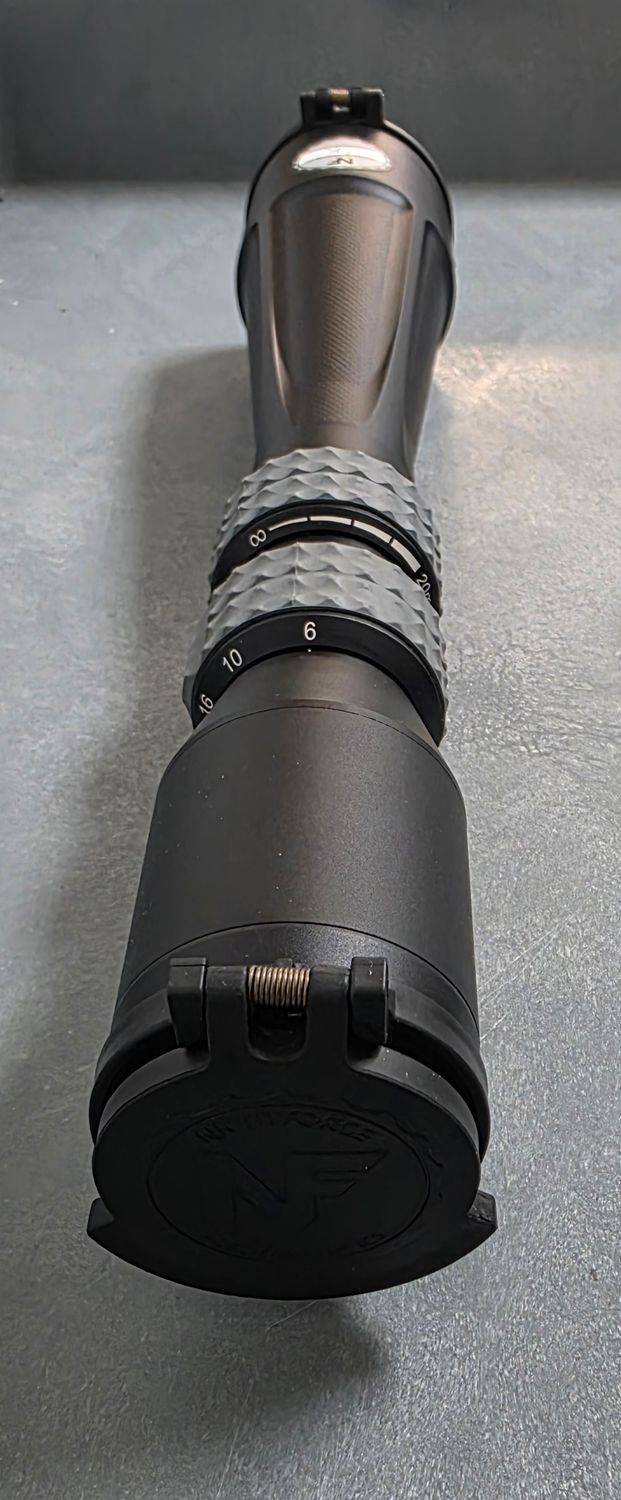

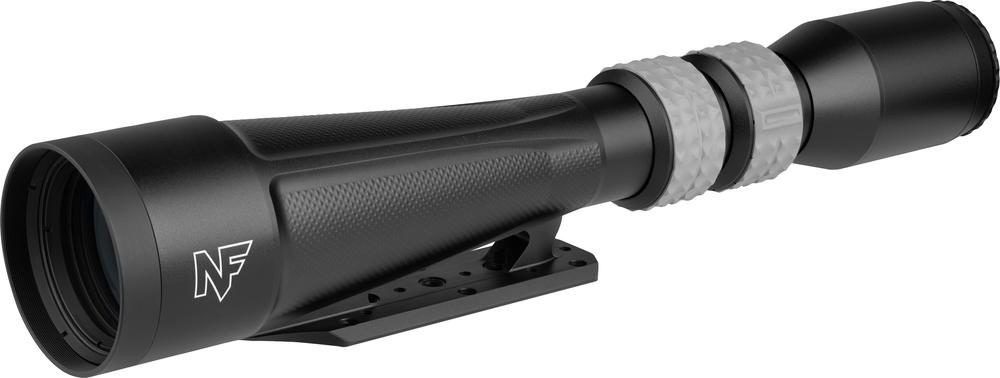

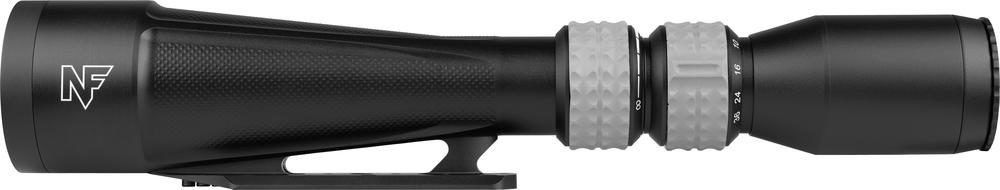

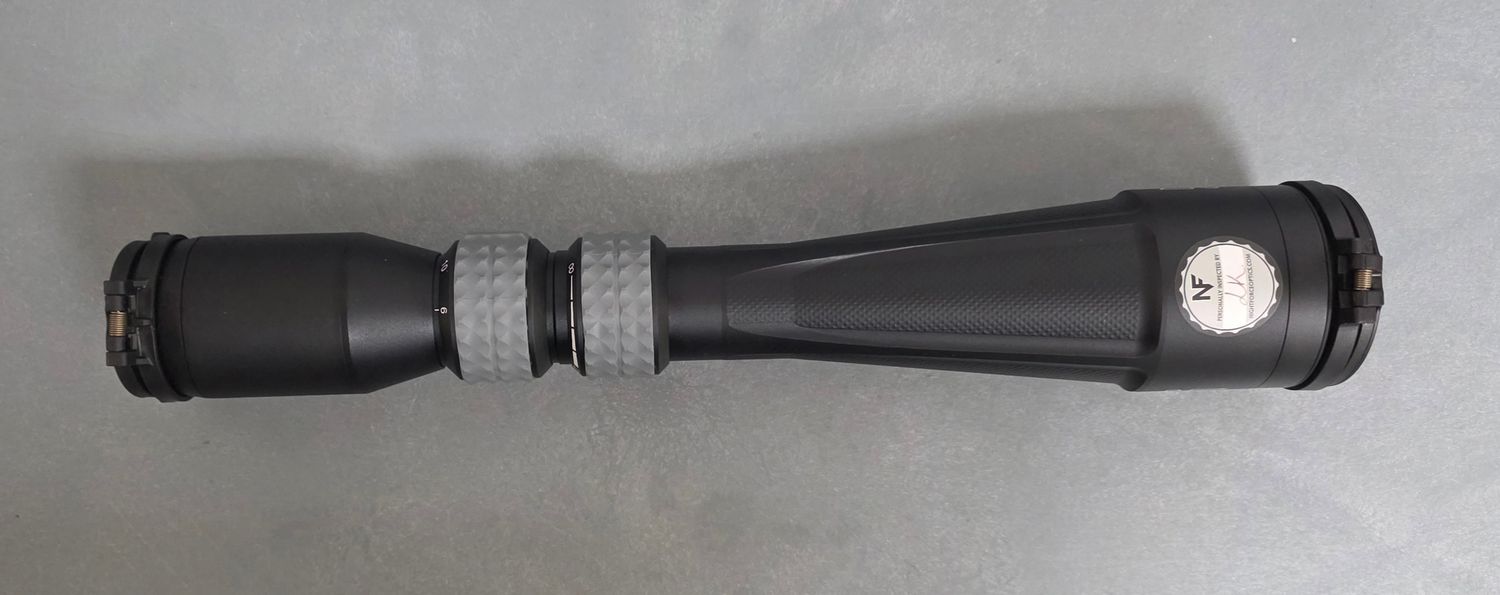

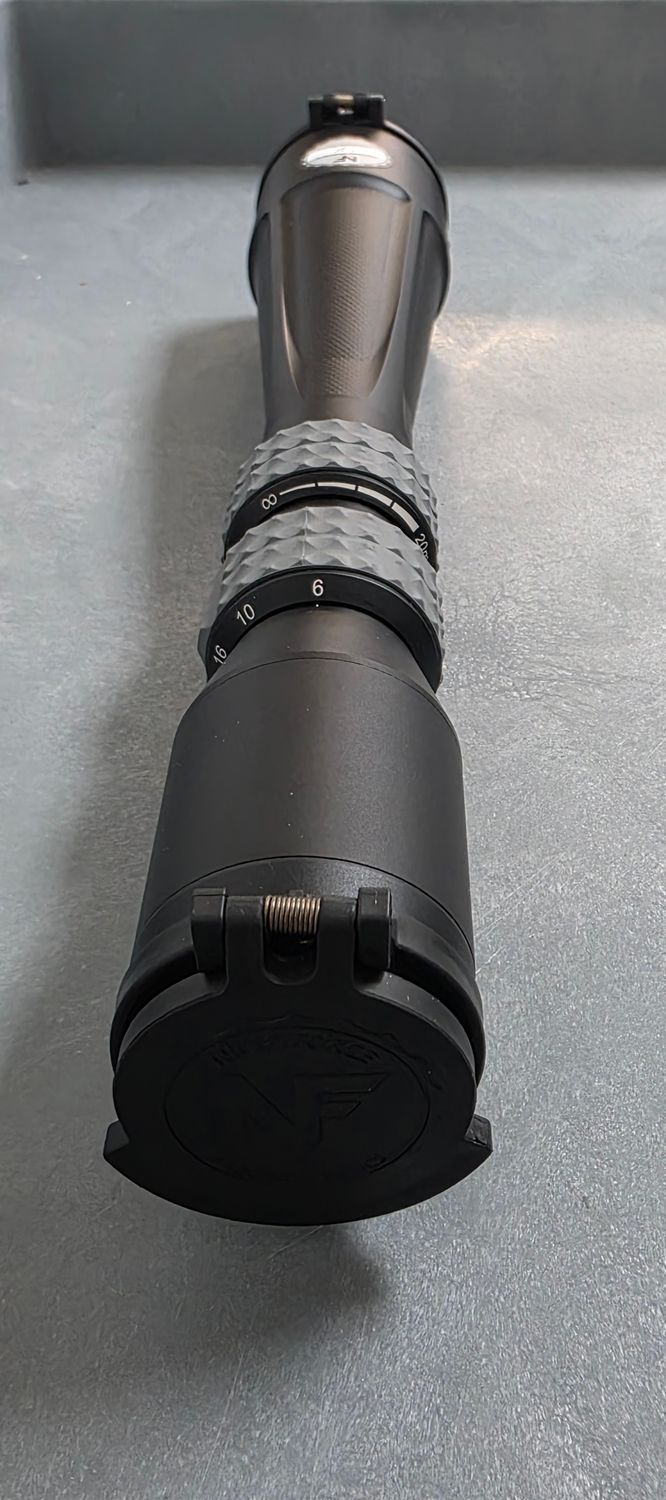

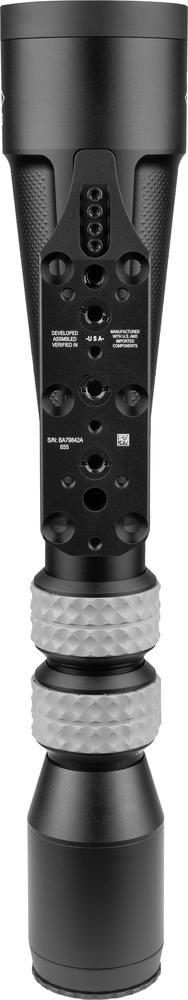

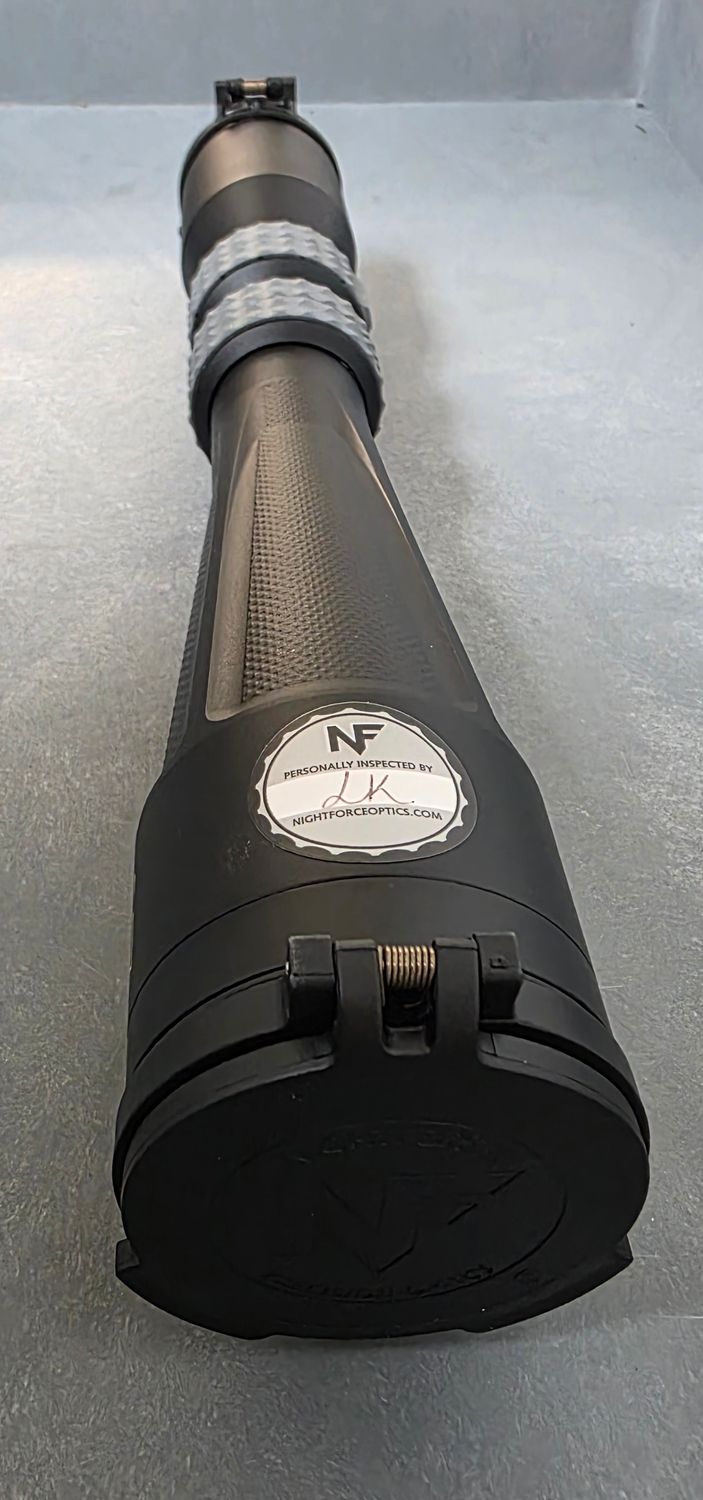

Configurable Field Spotting Scope (CFS) - 6-36x50mm F1 - MOA-XTsTM

Configurable Field Spotting Scope (CFS) - 6-36x50mm F1 - MOA-XTsTM

Store/Optics

Product Details

UPC: 847362024707

Based on the highly regarded MOA-XT™ reticle design, the MOA-XTs™ has been optimized for spotting scope applications. It’s designed to meet the needs of today’s precision rifle shooters and spotters at any range. The MOA-XTs™ is a variable power, first focal plane reticle specifically designed to add low and high magnification capabilities. At low magnification, the “goal posts” to the left and right provide coarse MOA adjustments, perfect for shooter/spotter communication. At high magnification, the inverted grid of the reticle is offset to maintain a clear view of bullet trace, while providing fine subtensions for precise corrections. Additionally, a section of 0.25 MOA subtensions is included at the grid's base for accurate range estimation.

Overall Length:

14.1 in / 358 mm

Objective Outer Diameter:

65 mm

Eyepiece Outer Diameter:

52 mm

Dovetail Base Length:

3.6 in / 94 mm

Cage Length:

5.1 in / 130 mm

Rail Length:

14 in / 356 mm

Rail to Optical Center:

1.5 in / 38 mm

Field of View @ 100 yd/m:

6x – 37.2 ft / 12.4 m, 36x – 7.2 ft / 2.4 m

Exit Pupil:

6x – 5.8 mm, 36x – 1.3 mm

Eye Relief:

50 mm

Close Focus:

21.9 yd / 20m

Spotting Scope Weight:

33.7 oz / 955 g

Cage Weight:

5.1 oz / 144 g

Reticle:

Horus TREMOR4™,MOA-XTs™,MIL-XTs™

Color:

Black
