YHM VICTRA-12 12 Gauge

Product Details

UPC: 841812102816

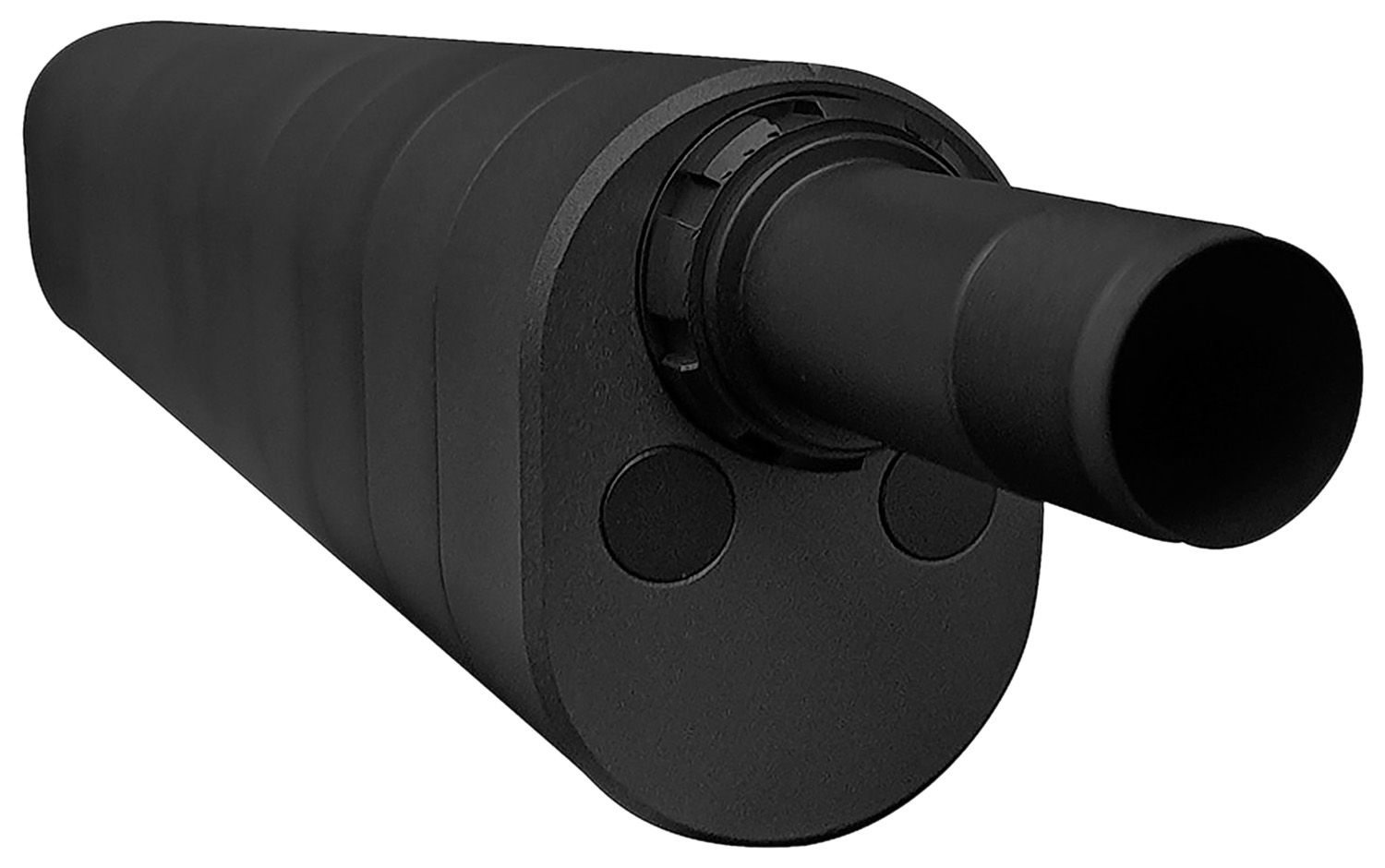

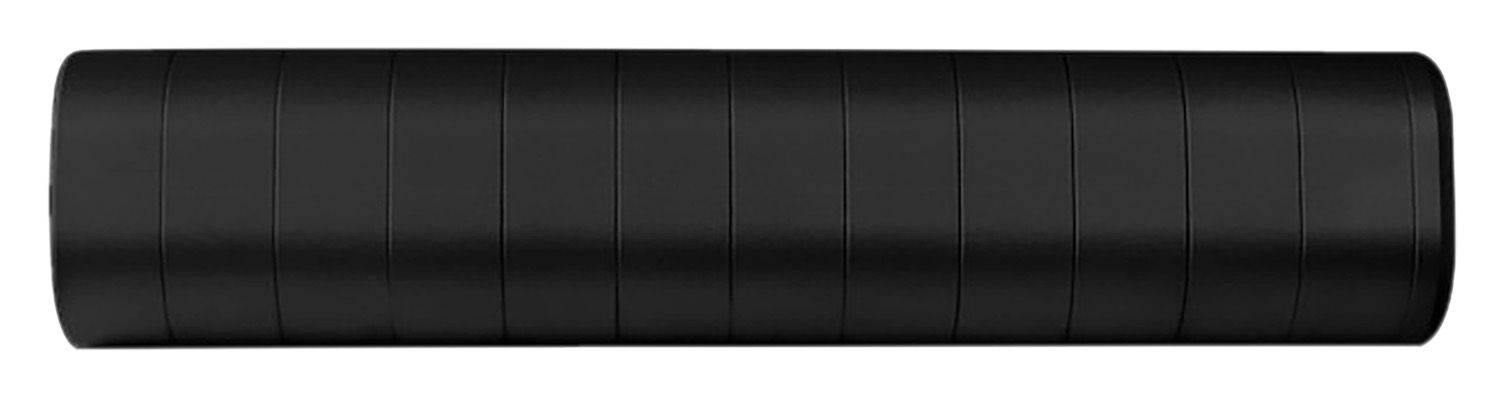

The YHM Victra™-12 shotgun suppressor is the result of YHM’s leading design, engineering and technology capabilities in the field of firearm suppression.

The Victra-12 features a modular design, meaning the user can remove sections to best meet their needs for sound suppression, firearm balance, weight and length. In the full 12” configuration, the Victra-12 reduces most commercial shotgun loads to 135 dB at the shooter’s ear. Most users will also note a decrease in felt recoil, which allows the shooter to concentrate on the target.

The VICTRA-12 attaches to the host firearm via the factory choke threads using our VICTRA Mounts. The mounts do not choke the shot. This happens at the muzzle of the suppressor. A variety of chokes are available.

Each Victra-12 includes two 12″ assembly rods, an Improved Cylinder choke, and a multi-use wrench.
Disassembly and assembly requires the use of a 5/32” Allen wrench (not included).

Additional rod kits are available to shorten the configuration of the Victra-12 down to 10”, 8” and 6” configurations.

VICTRA-12 12” Configuration (OAL 12.4”) – Weight 25 oz. – Ear average 135 dB

VICTRA-12 6” Configuration (OAL 6.4”) – Weight 13.5 oz. – Ear average 141 dB

BARREL/SHELL RESTRICTIONS:

7 ½” + barrel – 2 ¾” shell max.

10” + barrel – 3” shell max.

16” + barrel – 3 ½” shell

AMMUNITION: The Victra™-12 is designed for use with wadded or slug 12-gauge ammunition.
We recommend using shotshells with a cup style wad. Only factory-loaded ammunition should be used when
shooting with a suppressor. It is the user’s responsibility to make sure their ammunition choice matches their firearm.
High-density shot such as Hevi-Shot, Federal TSS, or similar tungsten or bismuth loads, as well as slugs, are not to
be used with a full choke.

SPECIFICATIONS:
Gauge: 12 – Max: 3.5” shells
Max Overall Length: 12.4”
Size: Height 2.7” x Width 1.95”
Weight: 25 oz. in 12″ configuration
Decibel Rating: 135 dB
Mount: YHM mount utilizing existing host firearm choke threads
Material: 7075-T6 Aluminum and 17-4 PH S.S.
Finish: Hard Anodized and Melonite

Made in the U.S.A.
